Challenges
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Rising energy prices are driving up residential electricity costs.
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Power outages caused by grid failures or extreme weather disrupt residential power reliability.
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
The intermittency of residential PV generation results in curtailed output and underutilized energy.
Solutions
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Functions
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Dynamic charge-discharge optimization guided by electricity price signals to maximize economic returns.
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
On/off-grid adaptability design to guarantee continuous power for mission-critical residential demand.
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
App-based connectivity that provides full visibility and control of household energy from any location.
Benefits
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Leveraging electricity price arbitrage and ancillary service participation to lower residential energy expenses.
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Emergency backup functionality ensures households remain resilient against power outages.
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Enhanced utilization of residential PV that lowers emissions and enables households to pursue a low-carbon lifestyle.
Advantages
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Safety
Comprehensive safety mechanisms and rigorous quality assurance that ensure secure and stable system operation.
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Cost Efficiency
AI-driven household consumption patterns learning that autonomously optimizes control strategies to maximize returns.
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Reliability
IP65-rated waterproof and dustproof design with intelligent heating for superior environmental adaptability.
TECHNICAL DATA
Battery Model JAS-Pack
Battery Type LFP (LiFePO4)
Nominal Energy 5.12kWh
Weight 54kg
Depth of Discharge (DOD) 90%
Protection level IP65
Nominal Voltage 51.2V
Dimensions (W¡ÁH¡ÁD) 540x490x240mm
Max. charging/discharging power 2.825kW/4.096kW
Cycle Life 10,000 cycles
Certifications Pack: IEC/EN 62619,UN38.3¡¡¡¡¡¡Cell: IEC/EN 62619,UL1973
Max. Parallel quantity 8
Inverter Model JAS-Inverter-1P-05K-EU JAS-Inverter-3P-10K-EU
Input Parameters (DC) Max. PV Input Capacity 6.5kW 20kW
MPPT Voltage Range 80~560V 140~1000V
MPPT Trackers / Strings per Tracker 2/2
Grid-side Parameters Nominal Voltage 230V 230/400V
Operating Frequency 50/60Hz
Max. Continuous Input Current 22A 25A
Max. Continuous Output Power 5kW 17.8kW
Battery Input Voltage Range 40~60V 44~58V
Nominal Voltage 48V 51.2V
Max. Charging/Discharging Current 100A/100A 160A/200A
Max. Charging/Discharging Power 4.6kW/5kW 8kw/10kW
Backup Load Parameters Nominal Voltage 230V 230/400V
Nominal Frequency 50/60Hz
Nominal Continuous Output Power 4.6kW 9.2kw
General Parameters Operating Temperature Range -25¡ãC to + 60¡ãC
Operating Altitude ¡Ü2000m
Dimensions (WxDxH) 540x590x240mm 540x980x240mm
Weight 33kg 50kg
Operating Humidity 0~95%
Certifications & Standards Grid Standards EN50549-1, VDE-AR-N4105, VDE 0124, CEI 0-21, G98, G99,
VDE 0126, NC RfG, UNE217001, UNE217002, NTS V2.1 Type A
Certifications IEC/EN 62109-1&2, IEC62040-1,IEC62619
EMC EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4,
EN61000-3-2, EN61000-3-3, EN61000-3-11,EN61000-3-12
PROJECTS
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø

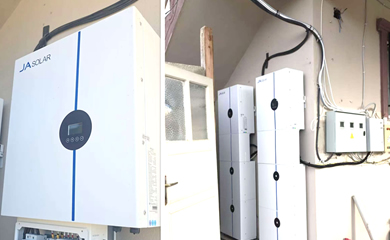

Residential ESS in Turkey
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø

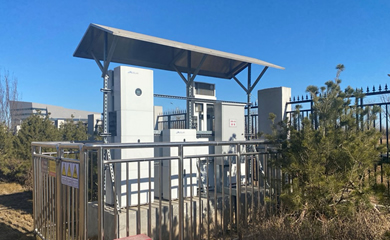

BESS Project in Xingtai Polytechnic Institute of New Energy
