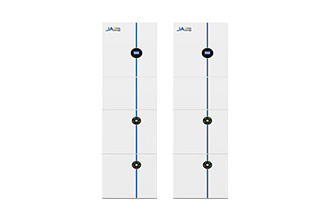

ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø Residential ESS Product
Advantages
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Safety & Reliability

Premium LFP cells with 10000+ cycles

Intelligent BMS with cell-level monitoring and multi-layer safety protection

ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Flexibility & Scalability

Modular design supports up to 8 parallel units (Total capacity 40.96 kWh)

Wall-mounted design enables tool-free installation, reducing installation time by 40%

ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
User-Centric Design

The LED interface enables real-time energy visualization and control

1C charge/discharge capability for high-power use

Technical Specifications
Model JAS-1P-05K-EU JAS-3P-10K-EU
DC Side
(Single Pack)		 Nominal Energy 5.12kWh 5.12kWh
Weight 54kg 54kg
Depth of Discharge (DOD) 90% 90%
Protection Level IP65 IP65
Nominal Voltage 51.2V 51.2V
Dimensions (W ¡Á D ¡Á H) 540¡Á490¡Á240mm 540¡Á490¡Á240mm
Max. Charging / Discharging Power 2.825kW/4.096kW 2.825kW/4.096kW
Cycle Life 10000 10000
Certifications Pack: IEC/EN 62619£¬£¬£¬UN38.3
Cell: IEC/EN 62619£¬£¬£¬UL1973		 Pack: IEC/EN 62619£¬£¬£¬UN38.3
Cell: IEC/EN 62619£¬£¬£¬UL1973
AC Side Nominal Voltage 230V 230/400V
Operating Frequency 50/60Hz 50/60Hz
Max. Continuous Input Current 22A 25A
Max. Continuous Output Power 5kW 17.8kW
PV Side Max. PV Input Capacity 6.5kW 20kW
MPPT Voltage Range 80 ~ 560V 140 ~ 1000V
MPPT Trackers / Strings per Tracker 2/2 2/2
System Parameters Operating Temperature Range -25¡ãC ~ +60¡ãC -25¡ãC ~ +60¡ãC
Operating Altitude ¡Ü2000m ¡Ü2000m
Humidity 0 to 95% RH 0 to 95% RH
Grid Standards EN50549-1, VDE-AR-N4105, VDE 0124, CEI 0-21, G98, G99, VDE 0126, NC RfG, UNE217001, UNE217002, NTS V2.1 Type A
Certifications IEC/EN 62109-1&2, IEC62040-1,IEC62619
EMC EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4, EN61000-3-2, EN61000-3-3, EN61000-3-11,EN61000-3-12
PROJECTS
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
Residential ESS in Turkey
ÄϹ¬NG28(Öйú¼¯ÍÅ)ÓÐÏÞ¹«Ë¾¹ÙÍø
BESS Project in Xingtai Polytechnic Institute of New Energy
